- Indoor
- Concurrent Dual-Band 2.4GHz & 5GHz
- 2×2:2 UL MU-MIMO
- Wi-Fi HaLow / LTE
- Support BLE/Zigbee/Thread
- 1 x GbE PoE WAN
- 1 x GbE LAN
- IP65
- Support ecCLOUD
SUPPORT OPENWIFI VERSION

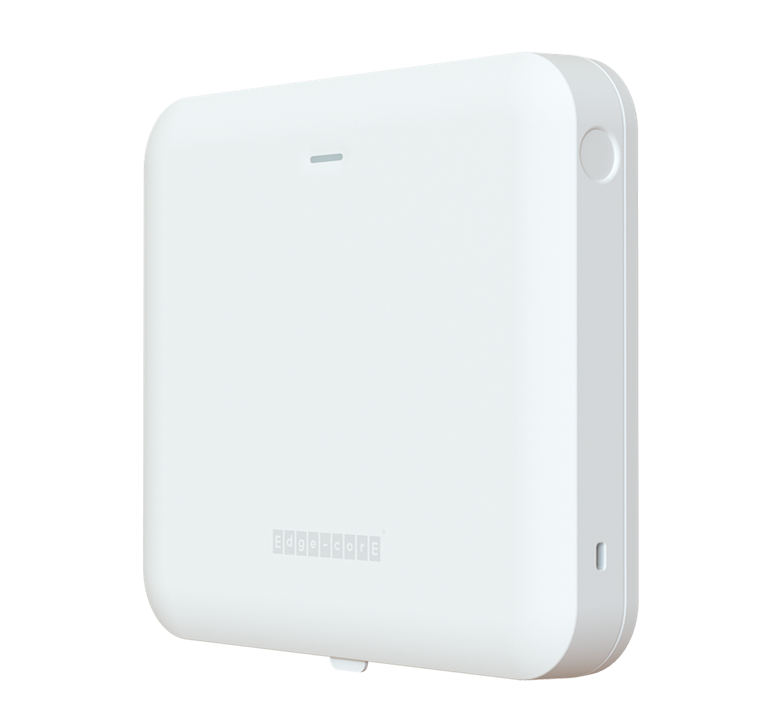

EAP111 stands as an enterprise-grade, dual-band Wi-Fi 6 access point boasting a concurrent operation and an IP55-rated enclosure. With support for 2×2:2 uplink and downlink MU-MIMO between the access point and multiple clients, EAP111 delivers an impressive aggregated data rate of up to 3Gbps. Notably, EAP111 comes equipped with a Bluetooth Low Energy (BLE) radio and ZigBee, enabling the integration of value-added applications such as iBeacon. Whether operating in standalone mode or under the management of Edgecore ecCLOUD, ecCLOUD-VPC, or EWS/VEWS Series controllers, EAP111 exemplifies versatility and high-performance connectivity.
Standards:
• 802.11ax (Wi-Fi 6)
• Concurrent dual-band 2.4 GHz & 5 GHz
Radio Chains:
• 2.4GHz: 2 x 2 ; 5GHz: 2 x 2
Spatial Streams:
• 2; MU-MIMO support
Aggregate Conducted Transmit Power:
• 2.4 GHz: Up to 25 dBm
• 5 GHz: Up to 25 dBm
Channelization:
• 2.4 GHz: 20 / 40 MHz
• 5 GHz: 20 / 40 / 80 / 160 MHz
Frequency Range:
• 2.401 – 2.483 GHz
• 5.170 – 5.835 GHz
Operating Channels:
• 2.4 GHz: 1-11 (US), 1-13 (Europe, Japan)
• 5 GHz*3 : 36-165 (US), 36-140 (Europe), 36-144 (Japan)
ESSIDs:
• Up to 16 per radio (32 total)
