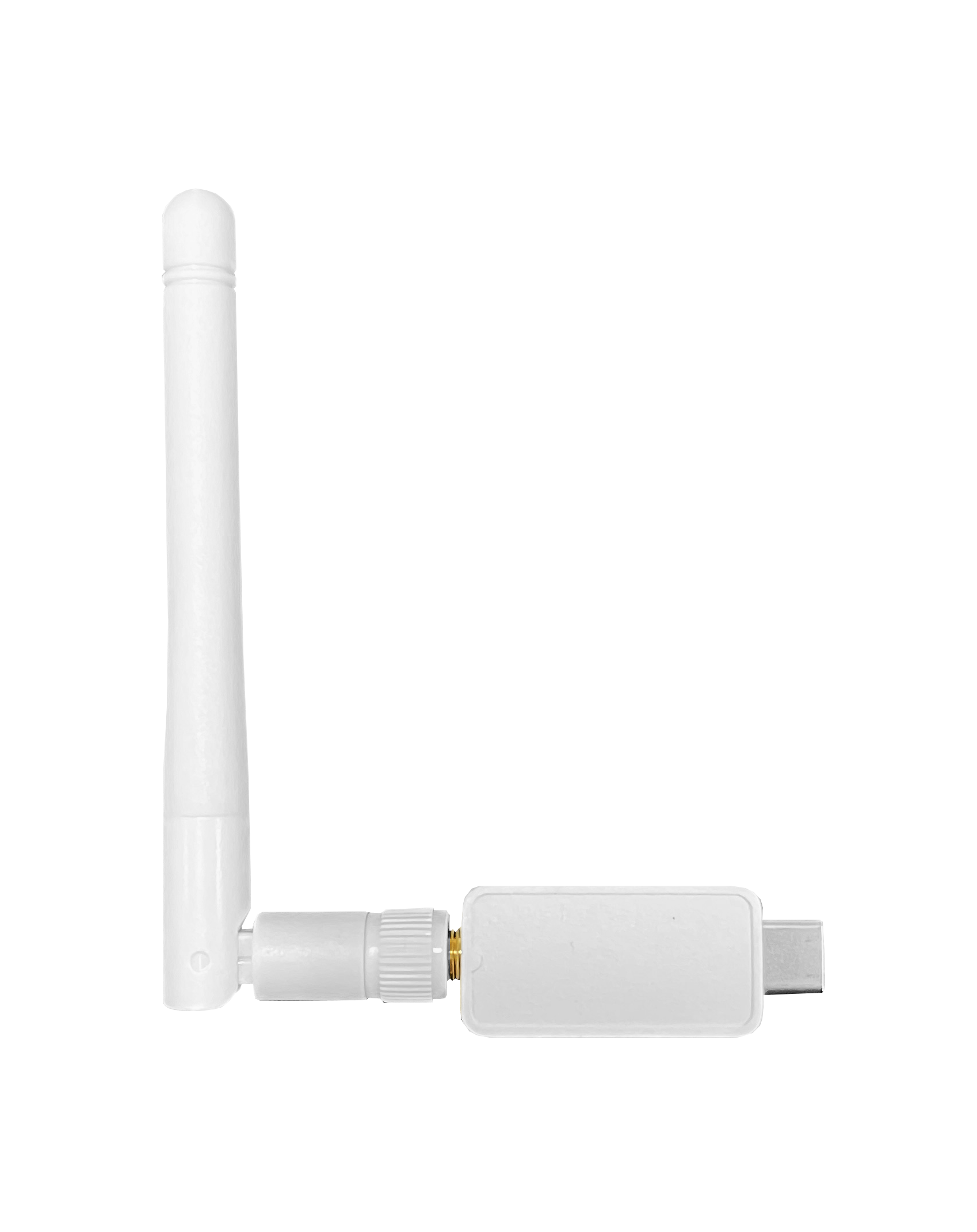

Pi7d-C

Wi-Fi HaLow USB Dongle

  • Wi-Fi HaLow
  • USB 2.0 Type C
  • AP/Station/Mesh Mode
Overview

Pi7d-C stands out as a Wi-Fi HaLow dongle in USB type C form factor, provisioning long-range, Wi-Fi HaLow connectivity from Access Point or computers to other low-power HaLow devices. It supports up to 43.3Mbps data rate in sub 1GHz bands by using 256-QAM modulation at 8MHz bandwidth.

Pi7d-C offers the flexibility to operate in AP mode, client mode or mesh mode and under the management of Edgecore ecCLOUD.

Specification
  • Power: USB-C 5V / 250mA

    Dimensions: 57 mm (L) x 19 mm (W) x 13 mm (H), excluding antenna

    Weight: 14 g

    Interface:

    • 1 x USB2.0type C
    • 1 x R-SMA Antenna Connector(Antenna included in the package)

    LED Indicator: Power

    Environmental Conditions:

    • Operating Temperature: -20°C to 60°C
    • Operating Humidity: 0% to 90% non-condensing

    Power Consumption: 1.16 W max.

    Antenna: 0.9dBi external detachable SMA antenna

Download
Datasheet
