Home > Products > SD-WAN Gateway > SDW102-L



  • 2 x GbE (or 2 x 1G SFP) WAN
  • 4 x GbE LAN
  • 4G Cat6 LTE
  • Up to 300 Mbps Tunnel Capability
  • 100 Concurrent Users
  • Support ecCLOUD

Edgecore Networks SD-WAN solution is to address those networking issues and able to provide robust, secure, adaptive network services on demand. By enhancing or substituting the traditional branch networking devices with virtualization appliances that can be programmed to understand the nature of traffic it is handling and dynamically adjust accordingly, latency-sensitive traffic for applications such as video and voice, need to be continuously monitored and prioritized, which requires such things as application recognition, traffic re- routing, load-balancing, bandwidth-control, automation fail-over, that MPLS connections simply cannot provide.

SDW102 is stable for SOHOs, chain stores, and SMEs application. It supports Wired WAN & LAN and offers optional 4G LTE Cat6 with SIM slot for application. SDW102 can be managed by SD-WAN software controller and allow users to install software controller in the data center or server. Besides, SDW102 can be adjusted as Hub or Spoke via software. On top of traffic monitoring, Edgecore Networks centralized controller can be used to set policies and prioritize traffic, in which the SD-WAN takes into account these policies and the network bandwidth to route traffic accordingly, ensuring the application performances expected.

  • Hardware

    Form Factor:
    • Desktop

    Dimensions (W x D x H):
    • 23 cm x 17.6 cm x 4.4 cm

    • 670 g

    • DC Input:12V/3.0A

    Environmental Conditions:
    • Operating Temperature: 0°C (32°F) to 40°C (104°F)
    • Operating Humidity: 10% to 90% non-condensing

    Optional Module:

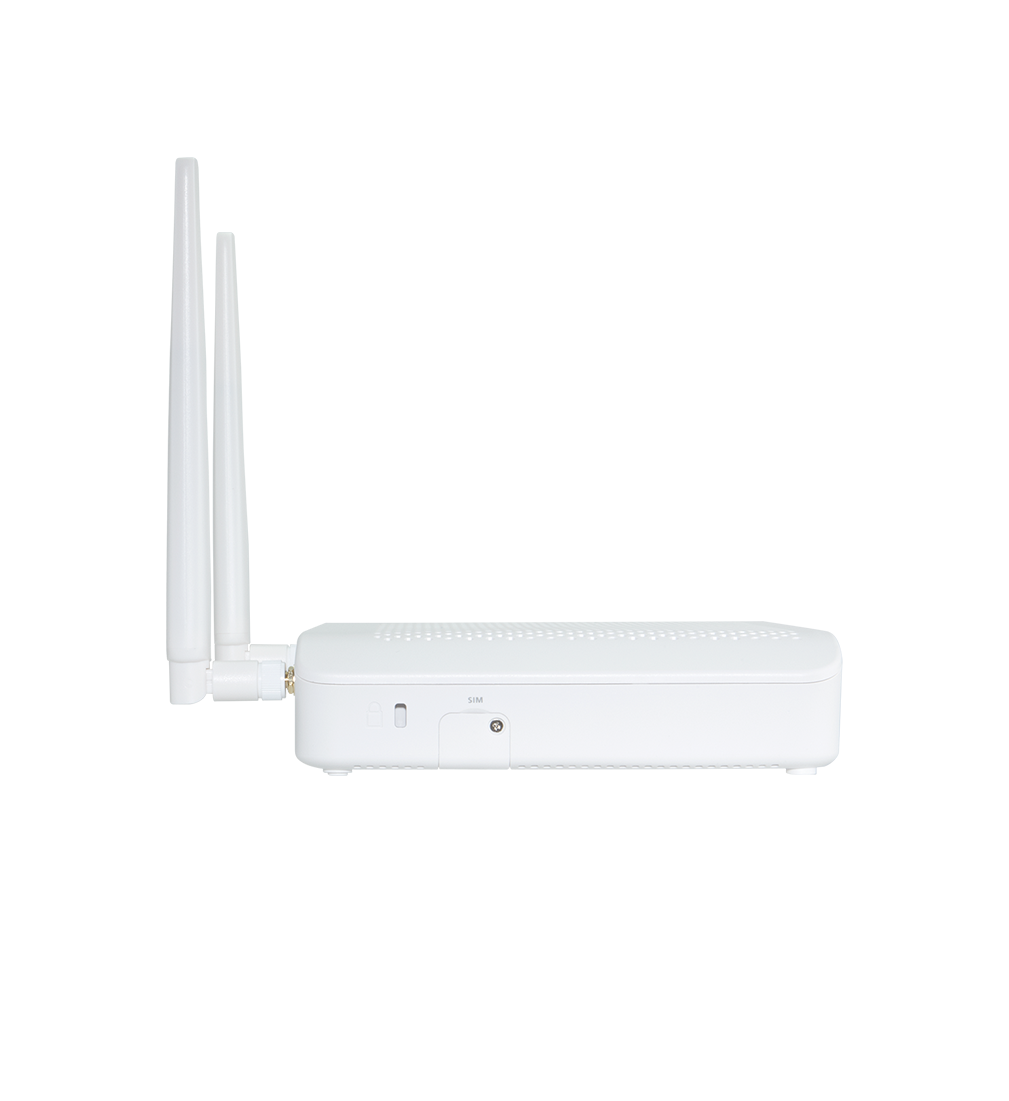

    •  4G LTE Cat6 with SIM slot with 4dBi RP-SMA Omni directional antenna

  • Interface

    • WAN: 2 x 10/100/1000Base-T Ethernet or 2 x SFP
    • LAN: 4 x 10/100/1000Base-T Ethernet
    • Console: 1 x RJ-45
    • USB ports: 2 x USB 3.0
    • RP-SMA Dipole Antenna: Option for 4G LTE

  • Capacity

    • Tunnel Capability: up to 300 Mbps
    • Throughput per Tunnel: up to 180 Mbps

    Concurrent User:
    • 100

  • Management

    SD-WAN Orchestrator:
    • X86 Appliance-based
    • Cloud Platform
    • Edgecore ecCLOUD

  • Software

    • Central Management
    • Zero Touch Deployment
    • Auto Discovery
    • Auto Provisioning
    • OTA Firmware Upgrade
    • TLS Encryption
    • Keep Alive Detection
    • Account Management
    • NTP
    • Email Alert
    • Event log
    • Reporting Tool
    • Disaster Recovery
    • Multi-Tenant

    • Network Address Translation (NAT)
    • WAN type: Static IP, DHCP, PPPoE
    • DHCP Server/ Client
    • Static Route Assignment
    • Dynamic Route OSPF/BGP
    • Virtual Server/ 1 to 1 NAT
    • Policy-based Routing

    • Firewall
    • ACL by IP/ Protocol/ Application
    • Tunnel Isolation
    • Management IP
    • TACACS+
    • URL Filter
    • DDoS Mitigation

    • Configure the VLAN for Each Port
    • Support DHCP Server for Different VLAN
    • PPPoE VLAN tag over WAN
    • VLAN passthrough from WAN to LAN

    • Bandwidth management
    • Priority management
    • Session control by IP/ Protocol/ Application

    • Split Tunnel (Internet access from local)
    • Complete Tunnel (Internet access to remote)
    • Site to Site
    • Site to Client (Work From Home)
    • Hub-Spoke/P2P Mesh

    Adaptive WAN Selection:
    • Multiple WAN
    • Auto Failover
    • Threshold Configurable
    • Internet Load balance
    • Traffic Steering
    • Application Aware
    • WAN Optimization

    Packet Analysis:
    • Traffic Flow History (Port, IP, Applications, Volume)
    • Top Application by Volume
    • Top Source by Volume

    • Manage Status
    • VPN Connection Status
    • System Information
    • Traffic Statistics
    • Tunnel Quality
    • WAN Quality

    Management Interface:
    • SSH(v2)
    • Web-based
    • Restful API
