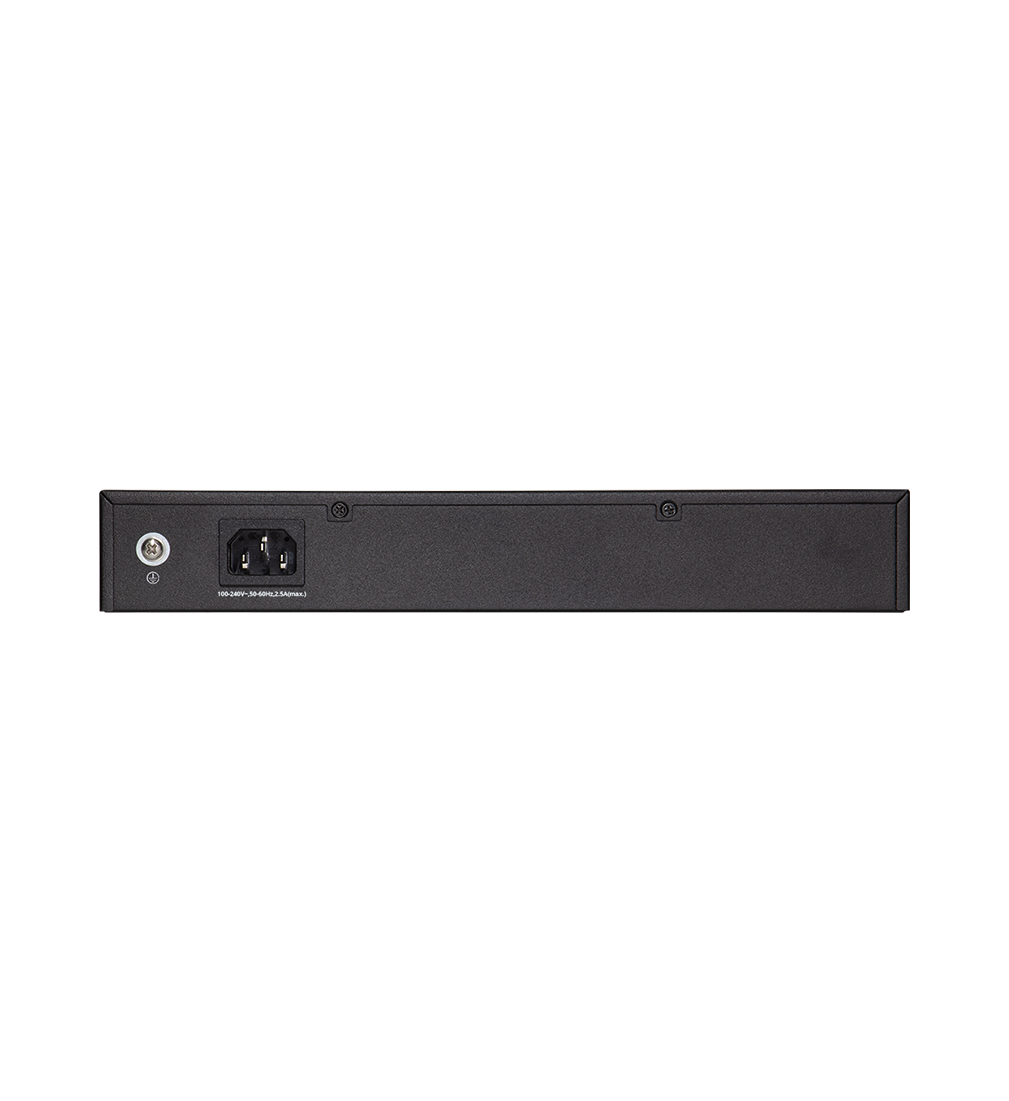

ECS1100-5P

Smart Managed Access Switch

  • 1 x RJ-45 10/100/1000 Uplink Port
  • 4 x RJ-45 PoE Ports
  • af/at 120W
  • 10 Gbps Switching Capacity
  • Support ecCLOUD
Overview

The ECS1100-5P is a fanless design PoE switch that supports up to 4 ports at 30 W to meet the increasing power demands of users. The ECS1100 Series offers complete PoE solutions from 120 W to 250 W. All the switches are rack mountable.

Specification
  • Interface
    • 1 x RJ-45 10/100/1000 Port
    • 4 x RJ-45 PoE Ports
  • Performance
    • Switching Capacity: 10 Gbps
    • Forwarding Rate: 7.44 Mbps
    • Flash Memory: 8 MB
    • DRAM: 256 K
    • Packet Buffer: 4  Mbits
    • MAC Address Table: 8 K
    • Jumbo Frames: 15 KB
    • Surge Protection: 6KV (RJ-45), 6KV (Power)
    • MTBF: ≥ 200,000 hrs
    • Heat Dissipation: 477.7
    • Acoustic Noise: 0 dB (A)
  • Power Supply
    • Max System Power Consumption: 140W
    • Power input:
      • 100-240 VAC, 50/60 Hz
  • PoE
    • PoE Power Budget: 120W (af/at)
    • Dynamic Power Allocation
    • Auto disable after exceeding power budget
    • PoE Timer
  • Mechanical
    • Form Factor: Rackmount
    • Dimension (WxDxH): 29.4 cm x 18.0 cm x 4.4 cm
    • Weight: 1.44 kg
  • Environmental
    • Operating Temperature: 0 to 50°C
    • Storage Temperature: -40 to 70 °C
    • Operating Humidity (non-condensing): 10% to 90%
    • Storage Temperature (non-condensing): 10% to 90%
  • Ports
    • RJ-45 port support:
      • 10BASE-T (IEEE 802.3)
      • 100BASE-TX (IEEE 802.3u)
      • 1000BASE-T (IEEE 802.3ab)



    • Digital Diagnostic Monitoring (DDM) on 1G SFP port
    • Auto MDI/MDI-X
    • Auto-negotiation for port speed and duplex mode
  • L2 Features
    • LACP
    • NTP
    • DHCP Client



    • Flow Control:
      • IEEE 802.3x for full duplex mode
      • Back-Pressure for half-duplex mode



    • VLANs:
      • VLAN Access
      • VLAN Trunk



    • PoE
      • PoE timer
      • PoE Priority (by port no.)*
      • PD-Alive



    • Storm Control
      • Broadcast storm control
      • Multicast storm control
      • Unkown unicast storm control



    • IGMP Snooping
      • IGMP v1/v2 Snooping



    • IP management
      • Configuration import/export
      • Firmware upgrade
      • Restart
      • Reset to factory default
      • User name/password
  • QoS Features
    • Rate Limiting (Ingress/Egress Port-Based):
    • Priority Queues Schedule (Strick Priority/WRR)
    • QoS Mode (Port-based/802.1p/DSCP)
  • Management
    • CLI
    • Web GUI
    • SNMP
    • Edgecore ecCLOUD
  • Safety
    • LVD
      • EN 62368-1
      • EN IEC 62368-1
  • Electromagnetic Compatibility
    • CE Mark
    • FCC Class A
    • BSMI
    • VCCI
    • UKCA
