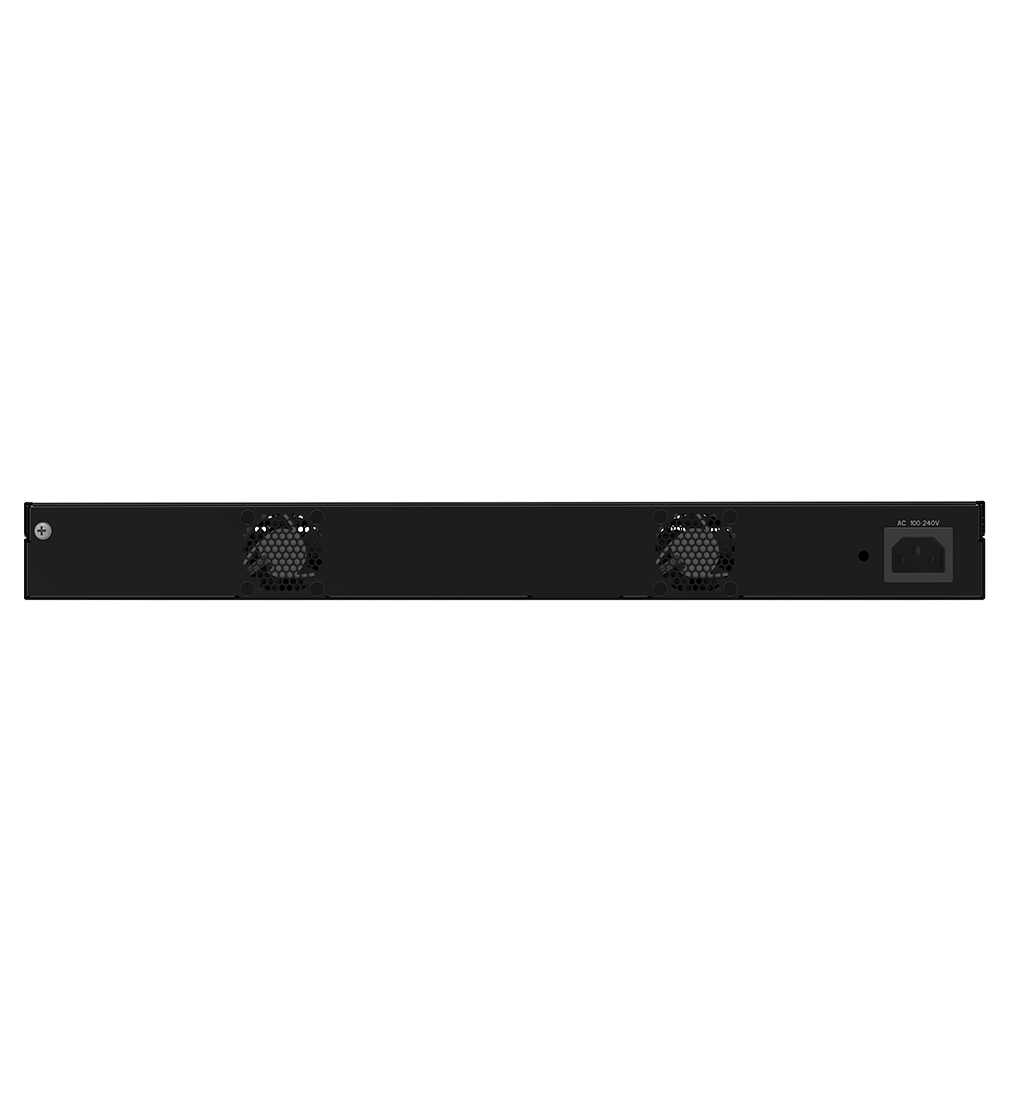

ECS4650-54T

L3 Gigabit Ethernet Aggregation Switch

  • 48 x 1GbE RJ-45 Ports
  • 6 x SFP28 25G Uplink Ports
  • 1 x Console Port
  • 1 x USB Port
  • 369 Gbps Switching Capacity
  • Support ecCLOUD
SUPPORT OPENLAN SWITCHING
Overview

The Edgecore ECS4650-54T switch is a Gigabit Ethernet access/aggregation switch with six 25G SFP28 uplinks.
This switch is ideal for use as a high-performance Gigabit access/aggregation switch with 1 Gigabit downlinks or as an enterprise core switch. Additionally, it is positioned as a cloud-edge access/aggregation switch, connecting IoT and other devices in enterprise and SMB deployments. It is also an excellent Gigabit access/aggregation switch option for SMBs, enterprises, and campus networks.

Specification
  • Interface
    • 48 x 1GbE RJ-45 Ports
    • 6 x SFP28 25G Uplink Ports
    • 1 x 1G RJ-45 Management Port
    • 1 x Console Port
    • 1 x USB Port
  • Performance
    • Switching Capacity: 369 Gbps
    • Forwarding Rate: 295 Mbps
    • Flash Memory: 512MB
    • DRAM: 2 GB
    • MAC Address Table: 32 K
    • Jumbo Frames: 10 KB
    • Auto-negotiation, Auto-MDI/MDIX
  • Power Supply
    • Max System Power Consumption: 52W
    • Power input:
      • 100 to 240 VAC, 50/60 Hz
  • Mechanical
    • Dimension (WxDxH): 44.2 cm x 42 cm x 4.36 cm
    • Weight: 4.7 kg
  • Environmental
    • Operating Temperature: -5 to 50°C
    • Storage Temperature: -40 to 70 °C
    • Operating Humidity (non-condensing): 5% to 95%
    • Storage Temperature (non-condensing): 5% to 95%
  • L2 Features
    • 1000BASE-T copper interfaces
    • Auto-negotiation for port speed and duplex mode
    • Auto MDI/MDI-X
    • Multi-speed (1G, 10G, 25G) fiber interfaces
    • SFP28 Ports Support:
      • IEEE 802.3ae changeable (10GBASE-SR/LR)
      • IEEE 802.3ay (25GBASE-SR)
      • IEEE 802.3cc (25GBASE-LR)
      • IEEE 802.3z (1000BASE-SX/LX) transceivers, and 10G/25G DAC/AOC
    • Digital Diagnostic Monitoring (DDM) on25GSFP28port
    • Flow Control:
      • IEEE 802.3x for full duplex mode
      • Jumbo frames 10KB
    • Broadcast/Multicast/Unknown Unicast storm control
    • Spanning Tree Protocol:
      • IEEE 802.1D Spanning Tree Protocol (STP)
      • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
      • IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), 64 instances
      • BPDU Guard
      • BPDU filtering
      • Root Guard
      • BPDU transparent
      • Loopback detection
    • Non-Spanning Tree loopback detection
    • ITU-T G.8032 Ethernet Ring Protection:
      • Sub 50m sec convergence
      • Revertive operation mode
      • Multiple-ring network
    • VLANs:
      • Supports 4K VLAN
      • Port-based VLAN
      • EEE 802.1Q VLAN
      • GVRP
      • IEEE 802.1v Protocol-based VLAN IP
      • Subnet-based VLAN
      • MAC-based VLAN
      • Traffic Segmentation (supports Exclude VLAN)
    • L2 Virtual Private VLAN:
      • Q-in-Q
      • L2 Protocol tunneling (xSTP, CDP, VTP and PVST+,LLDP)
      • CDP/PVST + Filtering
      • Selective Q-in-Q
    • Link Aggregation:
    • Static Trunk
      • IEEE 802.3ad Link Aggregation Control Protocol
      • Trunk Groups: 16, up to 8GE/4 10G ports per group
      • Load Balancing: SA+DA, SA, DA, SIP+DIP, SIP, DIP
    • Multi-chassis Link Aggregation
    • Static LACP
      • IGMP Snooping:
      • IGMP Authentication
      • IGMP v1/v2/v3snooping
      • IGMP Proxy reporting
      • IGMP Filtering
      • IGMP Throttling
      • IGMP Immediate Leave
      • IGMP Querier
    • MVR (Multicast VLAN Registration): Supports 5 multicast VLANs
    • Port mirroring
      • VLAN Mirror/Mac Based Mirror/ACL Mirror
    • Remote port mirror (RSPAN)
  • QoS Features
    • PriorityQueues:8hardwarequeuesperport
    • Traffic Classification: IEEE 802.1pCoS
    • IP Precedence DSCP
      • MAC Access control list (Source/Destination MAC, Ether type, Priority ID/ VLAN ID)
      • IP standard access control list (SourceIP)
      • IP extended access control list (Source/Destination IP, Protocol, TCP/UDP port number)
    • Traffic Scheduling:
      • Strict Priority
      • Weighted Round Robin
      • Strict +WRR
    • Ingress policy map (police rate, remark CoS)
    • Egress policy map (police rate, remark CoS/DSCP)
    • Rate Limiting (ingress and egress, per port base)
      • GE: Resolution 64 Kbps ~ 1,000Mbps
      • 10G: Resolution 64 Kbps ~ 10,000Mbps
    • Auto Traffic Control
  • Security
    • Port security
    • 1XportbasedandMACbasedauthentication
    • IEEE 802.1XSupplicant
    • Dynamic VLAN Assignment, Auto QoS
    • MAC authentication
    • Web authentication
    • Voice VLAN
    • Guest VLAN
    • L2/L3/L4 Access Control List:
      • MAC Access control list (Source/Destination MAC, Ether type, Priority ID/VLANID)
      • IP standard access control list (SourceIP)
      • IP extended access control list (Source/Destination IP, Protocol, TCP/UDP port number)
    • IPv6 ACL
    • DHCP Snooping
    • DHCP Info
    • DHCP Option82
    • DHCP Option 82Relay
    • IP Source Guard
    • PPPoE IA
    • Dynamic ARP Inspection
    • Denial of Service
    • Login Security
    • RADIUS authentication
    • RADIUS accounting
    • TACACS + authentication
    • TACACS + accounting
    • TACACS + authorization
    • Management Interface Access Filtering (SNMP, Web, Telnet)
    • SSH (v1.5/v2.0) for security Telnet
    • SSL for HTTPS
    • SNMPv3



    • DyingGasp
    • 6KV Surge Protection (10/100/1000 BASE-T ports)
  • Pv6 Features
    • IPv4/IPv6 dual protocol stack
    • IPv6 Address Types Stack: Unicast
    • IPv6 Neighbor Discovery:
      • Duplicate address
      • Address resolution
      • Unreachable neighbor detection
    • Stateless auto-configuration
    • Manual configuration
    • Remote IPv6ping
    • IPv6 Telnet support
    • HTTP overIPv6
    • SNMP overIPv6
    • IPv6 Syslog support
    • IPv6 TFTP support
    • MLD Snoopingv1/v2
    • IPv6 Source Guard
    • DHCPv6Snooping
    • MVR6
  • Green Ethernet

    IEEE 802.3az Energy-Efficient Ethernet (EEE)

  • OAM
    • 3ah EFM (Ethernet in the First Mile)
    • 1ag Connectivity Fault Management
    • Crosscheck Link Trace Loopback
    • ITU-T Y.1731 ETH OAM Performance Monitor
  • Routing
    • L3 Features IPv4
      • Multi-netting
      • CIDR (Classless Inter-Domain Routing)
      • Unicast Routing:
      • Static Routes (1 K)
      • RIPv1/v2
      • OSPFv2 (include RFC2328 PDC Encryption, RFC3101 Route Aggregation, RFC1365 Route Filtering)
      • BGP4+
      • Equal Cost multipath routing (ECMP)
      • IP Redundancy: VRRP RFC3768
      • DHCP Relay
    • L3 Features IPv6
      • IPv6 Unicast Routing:
      • Static Routes (1 K)
      • OSPFv3
      • DHCPv6 Relay
  • Management
    • Zero Touch provisioning
    • mDNS
    • Switch Management:
      • CLI via console port or Telnet
      • Web management
      • SNMP v1, v2c, v3
    • Firmware and Configuration:
      • Firmware upgrade via TFTP/HTTP/FTP/SFTP server
      • Multiple configuration files
      • Configuration file upload/download via TFTP/HTTP/FTP/SFTP server
    • RMON (groups 1, 2, 3 and9)
    • DHCP client for IP address assignment
    • DHCP dynamic provision Option66, 67
    • SNTP
    • Syslog (local Flash)
    • Remote log (RFC3164)
    • SMTP (E-mail Notification)
    • Supports LLDP (802.1ab)
    • sFlow v4,v5
    • IPv6s Flow
  • Safety
    • UL
    • CB (IEC 62368)
    • BSMI
  • Electromagnetic Compatibility
    • CEMark
    • FCC Class A
    • UKCA
    • RCM
    • VCCI
  • Supported Transceivers and Cables
    • 1000BASE-SX/LX
    • 10GBASE-SR/LR/RJ45
    • 10GBASE-DAC/AOCCable
    • 25GBASE-SR/LR
    • 25GBASE-DAC/AOC

    Note: More optics and detailed cabling information can be found “Here
