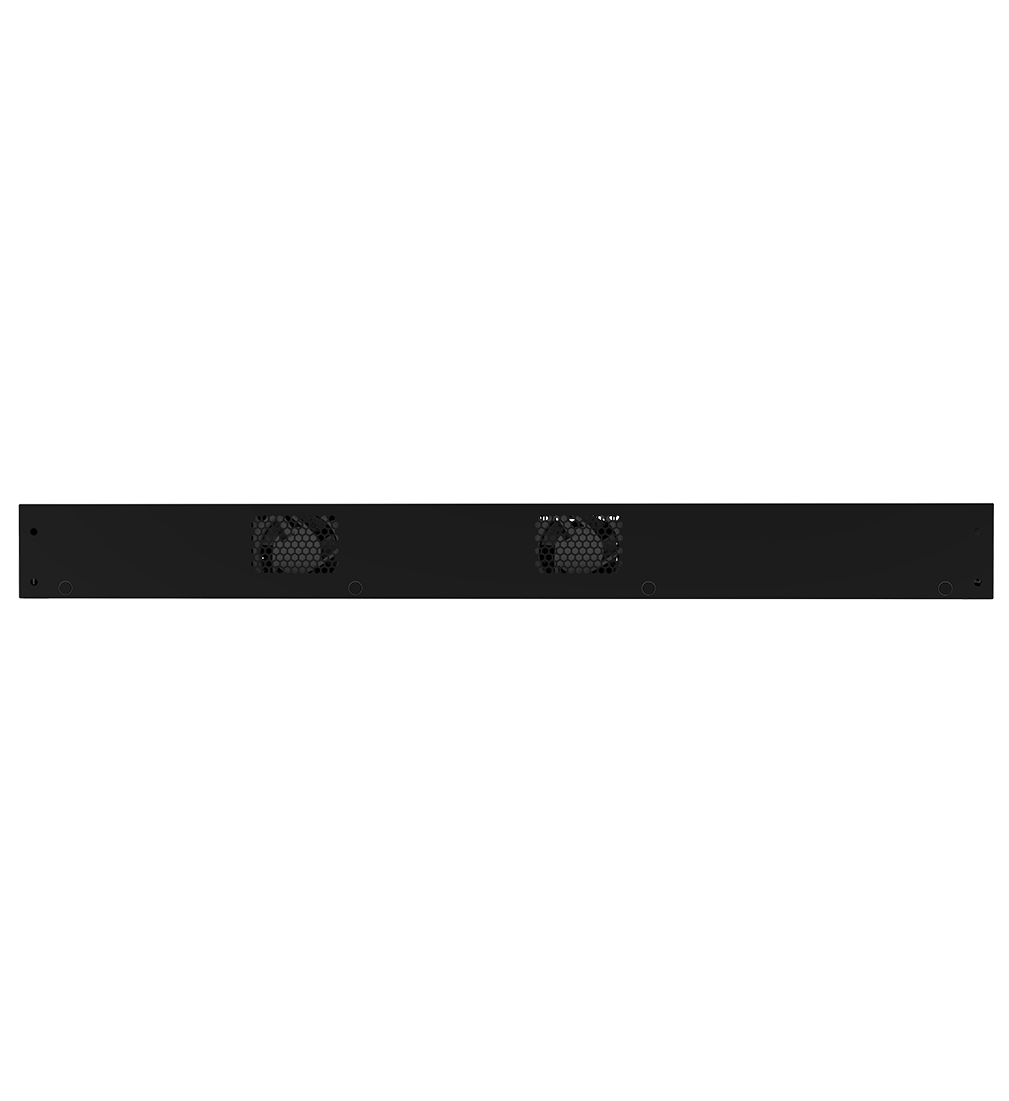

ECS4150-28F

L2+/L3 Lite Gigabit Ethernet Switch

20 x 1G SFP
4 x RJ-45/SFP Combo
4 x 10G SFP+ Uplink
1 x Console Port
1 x USB Port
128 Gbps Switching Capacity
AC/DC Power
-10 to 65°C
Support ecCLOUD

Overview

The ECS4150-28F is a L2+/Lite L3 Gigabit Ethernet access and fiber switches featuring advanced 10G SFP+ uplinks. Designed with enterprise connectivity and managed services in mind, the ECS4150-28F empowers System Integrators (SIs) and Managed Service Providers (MSPs) to deliver robust, scalable, and cloud-managed networking solutions.

To address diverse enterprise deployment scenarios, the ECS4150-28F offers highly versatile models that significantly simplify SI rollouts. For smart factories, warehouses, or environmentally demanding edge locations, the temperature-hardened ECS4150-28F serves as a highly resilient fiber switch.

Specification

20 x 100/1000BASE-X SFP Ports

4 x Combo Gigabit (RJ-45/SFP) Ports

4 x 10G SFP+ Uplink ports

1 x Console Port

1 x USB Port
Switching Capacity: 128 Gbps

Forwarding Rate: 95 Mbps

NAND Flash Memory: 256 MB

DRAM: 1 GB

MAC Address Table: 16 K

Jumbo Frames: 10 KB

Auto-negotiation, Auto-MDI/MDIX
Max System Power Consumption: 60 W

Power input:
– AC 100-240 VAC, 50/60 Hz
– DC Power Input (-48 – -60 V)
Rack Space: 19″

Dimension (WxDxH): 44 cm x 22 cm x 4.4 cm

Weight: 2.98 kg
Operating Temperature: -10 to 65°C

Storage Temperature: -40 to 70°C

Operating Humidity (non-condensing): 5% to 95%

Storage Temperature (non-condensing): 5% to 95%
10/100/1000BASE-T copper interfaces

Auto-negotiation for port speed and duplex mode

Auto MDI/MDI-X

Multi-speed (1G, 10G, 25G) fiber interfaces

SFP28 Ports Support:

IEEE 802.3ae (10GBASE-SR/LR)

IEEE 802.3ay (25GBASE-SR)

IEEE 802.3cc (25GBASE-LR)

IEEE 802.3z (1000BASE-SX/LX) transceivers, and 10G/25G DAC/AOC

SFP+ Ports Support:

IEEE 802.3ae changeable (10GBASE-SR/LR)

IEEE 802.3z (1000BASE-SX/LX) transceivers, and 10G DAC/AOC

Digital Diagnostic Monitoring (DDM) on 25G SFP28 port

Flow Control:

IEEE 802.3x for full-duplex mode

Back-Pressure for half-duplex mode

Jumbo frames 10KB

Broadcast/Multicast/Unknown Unicast storm control

Spanning Tree Protocol:

IEEE 802.1D Spanning Tree Protocol (STP)

IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)

IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), 64 instances

BPDU Guard

BPDU filtering Root Guard

BPDU transparent

Loopback detection

Non-Spanning Tree loopback detection

ITU-T G.8032v2 Ethernet Ring Protection Switch

Sub 50 msec convergence

Revertive operation mode

Multiple-ring network

VLANs:

Supports 4K VLAN

Port-based VLAN

IEEE 802.1Q VLAN

GVRP

IEEE 802.1v Protocol-based VLAN

IP Subnet-based VLAN

MAC-based VLAN

Trac Segmentation

L2 Virtual Private VLAN:

Q-in-Q

L2 Protocol tunneling (xSTP, CDP, VTP and PVST+, LLDP)

CDP/PVST+ Filtering

Selective Q-in-Q

Link Aggregation:

Static Trunk

IEEE 802.3ad Link Aggregation Control Protocol

Trunk Groups: 28, up to 8 GE/6 25GE ports per group

Load Balancing: SA+DA, SA, DA, SIP+DIP, SIP, DIP

Multi-chassis Link Aggregation

Static LACP

IGMP Snooping:

IGMP Authentication

IGMP v1/v2/v3 snooping

IGMP Proxy reporting

IGMP Filtering

IGMP Throttling

IGMP Immediate Leave

IGMP Querier

MVR (Multicast VLAN Registration): Supports 5 multicast VLANs

Port mirroring

VLAN Mirror/Mac Based Mirror/ACL Mirror

Remote port mirror (RSPAN)
Priority Queues: 8 hardware queues per port

Trac Classification:

IEEE 802.1p CoS

IP Precedence DSCP

MAC Access control list (Source/Destination MAC, Ether type, Priority ID/VLAN ID)

IP standard access control list (Source IP)

IP extended access control list (Source/Destination IP, Protocol, TCP/UDP port number)

Trac Scheduling:

Strict Priority

Weighted Round Robin

Strict + WRR

Ingress policy map (police rate, remark CoS)

Egress policy map (police rate, remark CoS/DSCP)

Rate Limiting (ingress and egress, per port base)

GE: Resolution 64 Kbps ~ 1,000 Mbps

10G: Resolution 64 Kbps ~ 10,000 Mbps

25GE: Resolution 64 Kbps ~ 25,000 Mbps (54-port models)

Auto Trac Control
Port security

IEEE 802.1X port based and MAC based authentication

IEEE 802.1X Supplicant

Dynamic VLAN Assignment, Auto QoS

MAC authentication

Web authentication

Voice VLAN

Guest VLAN

L2/L3/L4 Access Control List:

MAC Access control list (Source/Destination MAC, Ether type, Priority ID/VLAN ID)

IP standard access control list (Source IP)

IP extended access control list (Source/Destination IP, Protocol, TCP/UDP port number)

IPv6 ACL

DHCP Snooping

DHCP Info

DHCP Option 82

DHCP Option 82 Relay

IP Source Guard

PPPoE IA

Dynamic ARP Inspection

Denial of Service

Login Security

RADIUS authentication

RADIUS accounting

TACACS + authentication

TACACS + accounting

TACACS + authorization

Management Interface Access Filtering (SNMP, Web, Telnet)

SSH (v2) for security Telnet

SSL for HTTPS

SNMP v1/v2c/v3
IEEE 802.3az Energy-Efficient Ethernet (EEE)
IPv4/IPv6 dual protocol stack

IPv6 Address Types Stack: Unicast

IPv6 Neighbor Discovery:

Duplicate address

Address resolution

Unreachable neighbor detection

Stateless auto-configuration

Manual configuration

Remote IPv6 ping

IPv6 Telnet support

HTTP over IPv6

SNMP over IPv6

IPv6 Syslog support

IPv6 TFTP support

MLD Snooping v1/v2

IPv6 Source Guard

DHCPv6 Snooping

MVR6
Zero Touch provisioning

mDNS

Switch Management:

CLI via console port or Telnet

Web management

SNMP v1, v2c, v3

Firmware and Configuration:

Firmware upgrade via TFTP/HTTP/FTP/SFTP server

Multiple configuration files

Configuration file upload/download via TFTP/HTTP/FTP/SFTP server

RMON (groups 1, 2, 3 and 9)

DHCP client for IP address assignment

DHCP dynamic provision Option 66,67

SNTP

Syslog (local Flash)

Remotelog (RFC3164)

SMTP (E-mail Notification)

Supports LLDP (802.1ab)

sFlow v4, v5

IPv6 sFlow
IEEE 802.3ah EFM (Ethernet in the First Mile)

IEEE 802.1ag Connectivity Fault Management

Cross check

Link Trace

Loopback

ITU-T Y.1731 ETH OAM Performance Monitor
Yes
L3 Features

IPv4 Multi-netting

CIDR (Classless Inter-Domain Routing)

Unicast Routing

Static Routes

L3 Features IPv6

IPv6 Unicast Routing

Static Routes

RIPv1/v2
UL (CSA 22.2 NO 62368-1 and UL62368-1)

CB (IEC/EN 62368-1)

BSMI (CNS 15598-1)
CE Mark

FCC Class A

CISPR Class A

BSMI

VCCI
1000BASE-SX/LX/EX/ZX/RJ45

10GBASE-SR/LR/ER/RJ45

10GBASE-DAC/AOC Cable

25GBASE-SR/LR (54-port models)

25GBASE-DAC/AOC Cable (54-port models)

*Note: More optics and detailed cabling information can be found “Here”
