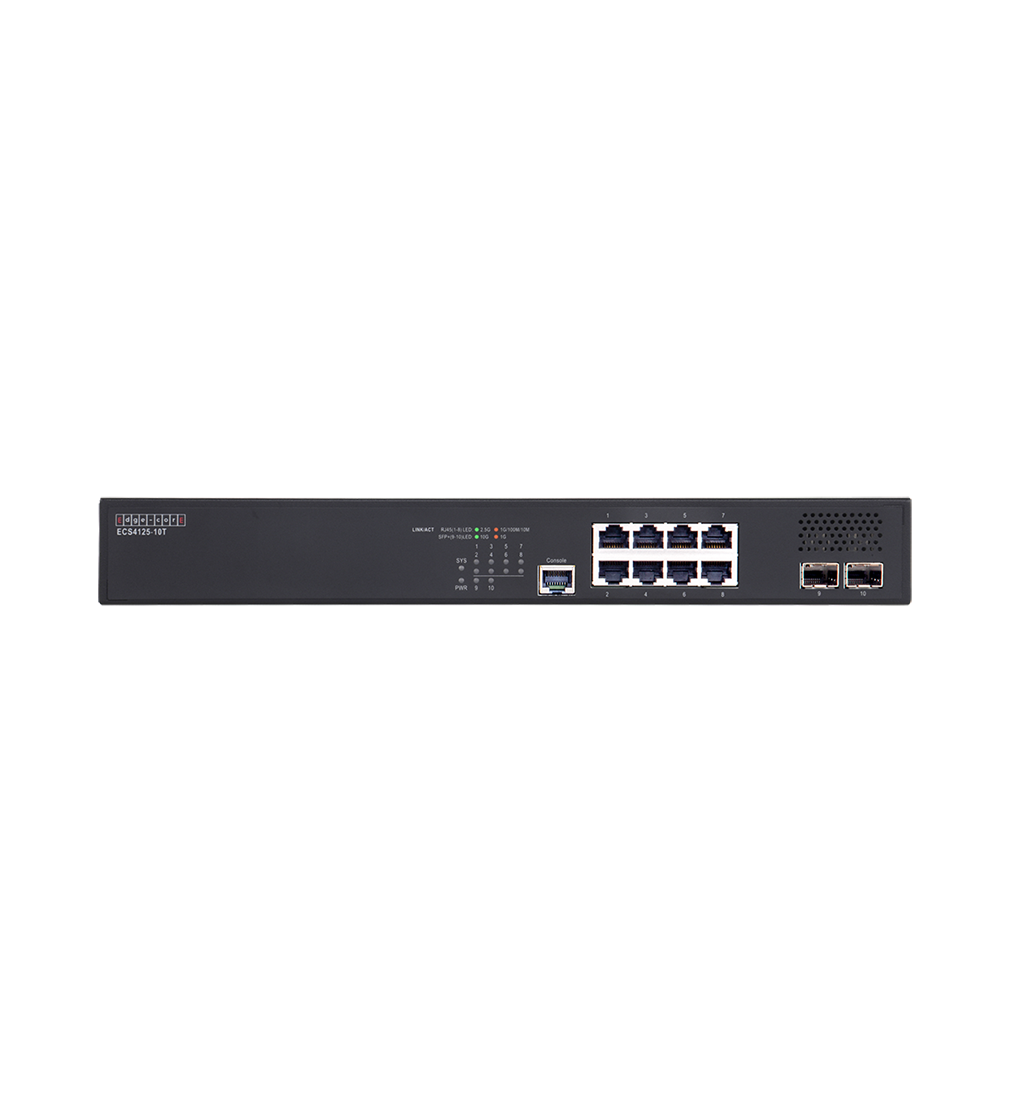

ECS4125-10T

L2+/L3 Lite 2.5G Switch

8 x 1G/2.5G RJ45 Ports
2 x 10G SFP+ Uplink Ports
1 x Console Port
80G Switching Capacity
Support ecCLOUD

Overview

The Edgecore ECS4125-10T is a robust 2.5 Gigabit Ethernet access switch designed for Small to Medium-sized Businesses (SMBs), enterprises, and campus environments. Featuring two 10G uplink ports, it is ideal for situations that demand high availability, robust security, advanced multicast management, and exceptional Quality of Service (QoS) at the network edge. Additionally, it offers IPv6 management, security capabilities, multicast control, and versatile cloud management options such as ecCLOUD or TIP (Telecom Infra Project) OpenLAN Switching.

Specification

8 x 1G/2.5G RJ45 Ports

2 x 10G SFP+ Uplink Ports

1 x Console Port
Switching Capacity: 80 Gbps

Forwarding Rate: 59.52 Mbps

Flash Memory: 64 MB

DRAM: 1 GB

MAC Address Table: 32 K

Jumbo Frames: 12 KB

Auto-negotiation, Auto-MDI/MDIX
Power input:

100 to 240 VAC, 50/60 Hz
Rack Space: 19″

Dimension (WxDxH): 33 cm x 20.8 cm x 4.4 cm

Weight: 1.98kg
Operating Temperature: 0 to 50°C

Storage Temperature: -40 to 70 °C

Operating Humidity (non-condensing): 10% to 90%

Storage Temperature (non-condensing): 10% to 90%
1/2.5G BASE-T copper interfaces

Auto-negotiation for port speed and duplex mode

Auto MDI/MDI-X

Dual-speed (1G and 10G) fiber interfaces

SFP+ Ports Support:

IEEE 802.3ae changeable (10GBASE-SR/LR)

IEEE 802.3z (1000BASE-SX/LX) transceivers, and 10G DAC/AOC

Digital Diagnostic Monitoring (DDM) on 10G SFP+ port

Flow Control:

IEEE 802.3x for full duplex mode

Back-Pressure for half duplex mode

Jumbo frames 12KB

Broadcast/Multicast/ Unknown Unicast Storm Control

Spanning Tree Protocol:

IEEE 802.1D Spanning Tree Protocol (STP)

IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)

IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), 64 instances

BPDU Guard

BPDU filtering

Root Guard

BPDU transparent

Loopback detection

Non-Spanning Tree Loopback detection

ITU-T G.8032 Ethernet Ring Protection:

Sub 50 msec convergence

Revertive operation mode

Multiple-ring network

VLANs:

Supports 4K VLAN

Port-based VLAN

IEEE 802.1Q VLAN

GVRP

IEEE 802.1v Protocol-based VLAN

IP Subnet-based VLAN

MAC-based VLAN

Traffic Segmentation

L2 Virtual Private VLAN:

Q-in-Q

L2 Protocol tunneling (xSTP, CDP, VTP and PVST+, LLDP)

CDP/PVST+ Filtering

Selective Q-in-Q

Link Aggregation:

Static Trunk

IEEE 802.3ad Link Aggregation Control Protocol

Trunk Groups: 16, up to 8 GE/4 10G ports per group

Load Balancing: SA+DA, SA, DA, SIP+DIP, SIP, DIP

IGMP Snooping:

IGMP v1/v2/v3 snooping

IGMP Proxy reporting

IGMP Filtering

IGMP Throttling

IGMP Immediate Leave

IGMP Querier

MVR (Multicast VLAN Registration): Supports 5 multicast VLANs

Port mirroring

Remote port mirror (RSPAN)
Priority Queues: 8 hardware queues per port

Traffic classification:

IEEE 802.1p CoS

IP Precedence

DSCP

MAC Access control list (Source/Destination MAC, Ether type,

Priority ID/VLAN ID)

IP standard access control list (Source IP)

IP extended access control list (Source/Destination IP, Protocol, TCP/UDP port number)

Traffic Scheduling:

Strict Priority

Weighted Round Robin

Strict + WRR

Ingress policy map (police rate, remark CoS)

Egress policy map (police rate, remark CoS/DSCP)

Rate Limiting (Ingress and Egress, per port base)

GE: Resolution 64 Kbps ~ 1,000 Mbps

10G: Resolution 64 Kbps ~ 10,000 Mbps

Auto Traffic Control
Port security

IEEE 802.1X port based and MAC based authentication

Dynamic VLAN Assignment, Auto QoS

MAC authentication

Web authentication

Voice VLAN

Guest VLAN

L2/L3/L4 Access Control List:

MAC Access control list (Source/Destination MAC, Ether type,

Priority ID/VLAN ID)

IP standard access control list (Source IP)

IP extended access control list (Source/Destination IP, Protocol, TCP/UDP port number)

IPv6 ACL

DHCP Snooping

DHCP Option 82

DHCP Option 82 Relay

IP Source Guard

PPPoE IA

Dynamic ARP Inspection

Denial of Service

Login Security

RADIUS authentication

RADIUS accounting

TACACS + authentication

TACACS + accounting

TACACS + authorization

Management Interface Access Filtering (SNMP, Web, Telnet)

SSH (v2) for secure Telnet

SSL for HTTPS

SNMPv1/v2c/v3
IEEE3az Energy-Efficient Ethernet (EEE)
IPv4/IPv6 Dual Protocol stack

IPv6 Address Types Stack: Unicast

IPv6 Neighbor Discovery:

Duplicate address

Address resolution

Unreachable neighbor detection

Stateless auto-configuration

Manual configuration

Remote IPv6 ping

IPv6 Telnet support

HTTP over IPv6

SNMP over IPv6

IPv6 Syslog support

IPv6 TFTP support

MLD Snooping v1/v2

IPv6 source guard

DHCPv6 snooping

MVR6
Switch Management:

CLI via console port or Telnet/SSH

Web management

SNMP v1, v2c, v3

Firmware and Configuration:

Firmware upgrade via TFTP/HTTP/FTP/SFTP server

Multiple configuration files

Configuration file upload/download via TFTP/HTTP/FTP/SFTP server

RMON (groups 1, 2, 3 and 9)

BOOTP, DHCP client for IP address assignment

DHCP dynamic provision option 66,67

SNTP

Syslog (local flash)

Remotelog (RFC3164)

SMTP (E-mail Notification)

Support LLDP (802.1ab)

sFlow v4, v5
IPv4/IPv6 Static Route

RIP v1/v2
Yes
UL (CSA 22.2 NO. 62368-1 and UL 62368-1)

CB (IEC/EN 62368-1)
CE Mark

FCC Class A

CISPR Class A

BSMI

VCCI
Please refer to the product datasheet

Download

Datasheet

ECS4125-10T Datasheet

Quick Start Guide & SRI

ECS4125-10T Quick Start Guide & SRI

ECS4125-10T Quick Start Guide_TIP Version

User Manual

ECS4125-10T Web Management Guide

ECS4125-10T CLI Reference Guide

Certification

RoHS

DOC

Transceiver/Cable List

Transceiver/Cable Compatible List
