- Indoor
- Concurrent tri-band 2.4 & 5GHz & 6GHz
- 2x2x2:2 UL/DL MU-MIMO
- Support BLE/Zigbee/Thread
- 1 x 5GbE PoE WAN
- 1 x GbE LAN
- Support ecCLOUD
SUPPORT OPENWIFI VERSION

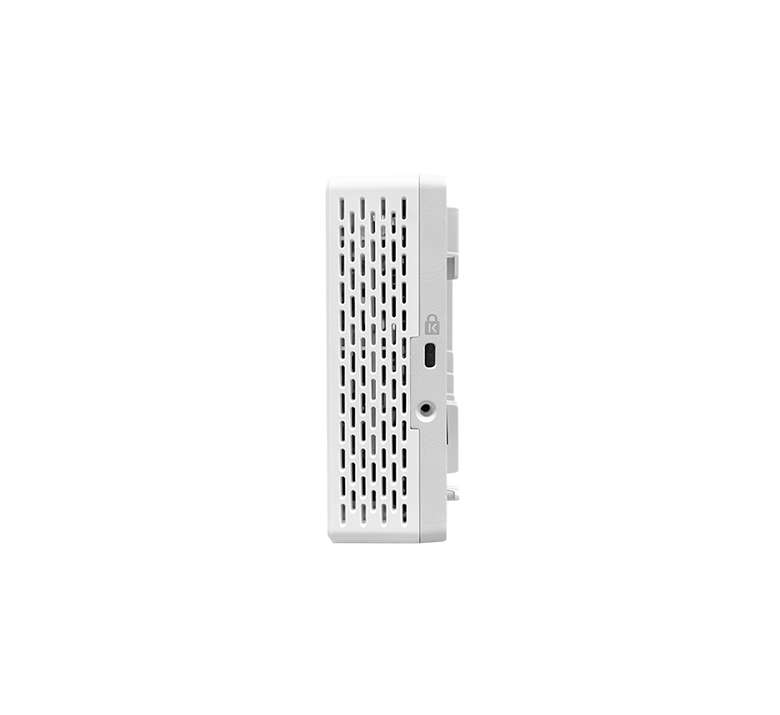

EAP115 stands as an enterprise-grade, dual-band Wi-Fi 7 access point featuring 4K-QAM, and low latency for superior speeds and high-density performance. Supporting 2×2:2 uplink and downlink MU-MIMO between the access point and multiple clients, EAP115 achieves an impressive aggregated data rate of up to 3.6 Gbps. Notably, EAP115 comes equipped with a Bluetooth Low Energy (BLE) radio and ZigBee, enabling the integration of value-added applications. Whether operating in standalone mode or under the management of Edgecore ecCLOUD or an OpenWiFi CloudSDK-enabled controller, EAP115 exemplifies versatility and high-performance connectivity.
Standards:
• 802.11a/b/g/n/ac/ax/be (Wi-Fi 7)
• Concurrent dual-band 2.4 GHz, 5 GHz
Radio Chains:
• 2.4 GHz: 2 x 2 ; 5 GHz: 2 x 2
Spatial Streams:
• 4 (2×2:2 at 2.4 GHz, 2×2:2 at 5 GHz)
Aggregate Conducted Transmit Power:
• 2.4 GHz: Up to 26 dBm
• 5 GHz: Up to 26 dBm
Channelization:
• 2.4 GHz: 20 / 40 MHz
• 5 GHz: 20 / 40 / 80 / 160 MHz
Frequency Range:
• 2.401 – 2.483 GHz
• 5.170 – 5.835 GHz
Operating Channels:
• 2.4 GHz: 1-11 (US), 1-13 (Europe, Japan)
• 5 GHz : 36-165 (US), 36-140 (Europe), 36-144 (Japan)
ESSIDs:
• Up to 16 per radio for 2.4 GHz, 5 GHz
