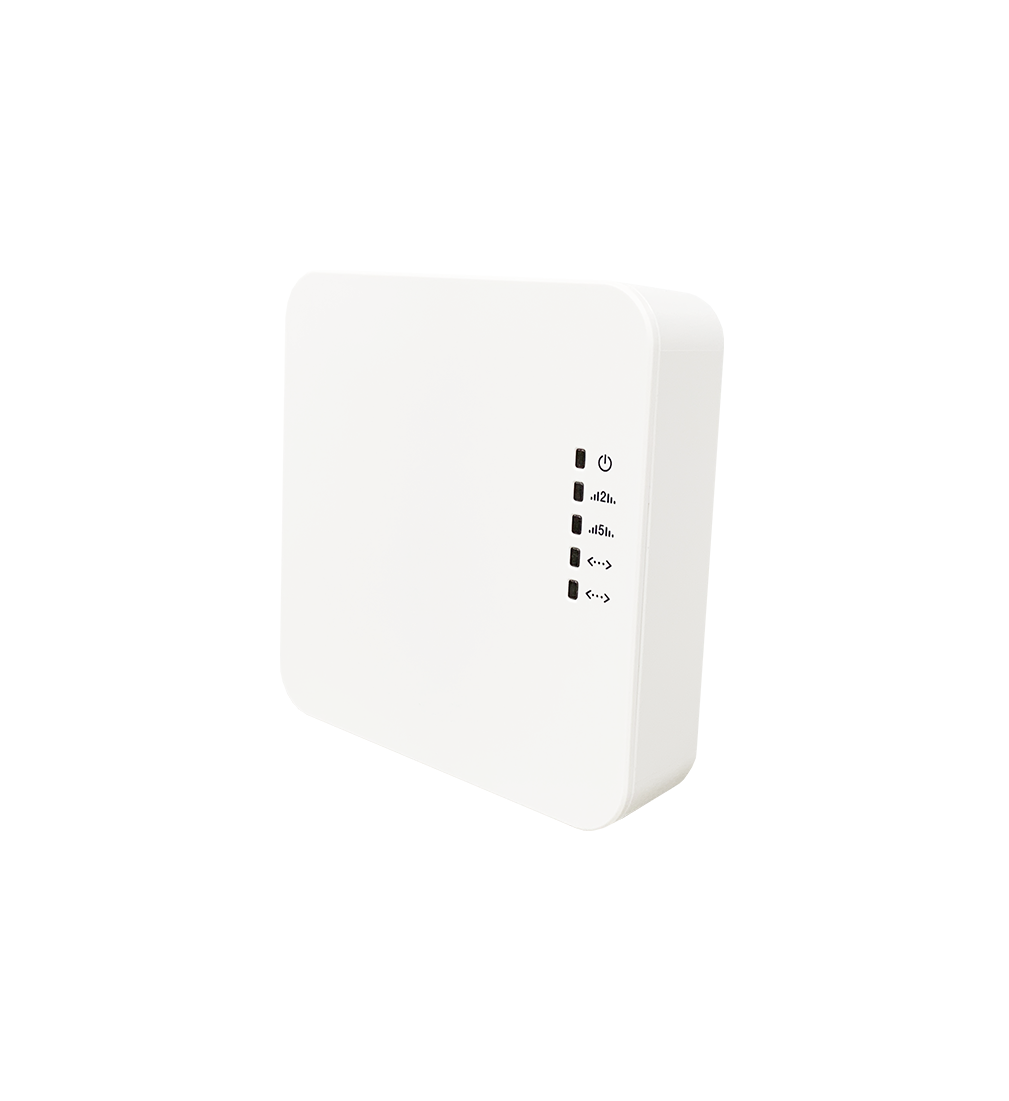

SP-W2M-AC1200

Indoor Wi-Fi 5 Access Point

  • 802.11ac Wave2
  • Concurrent Dual-Band 2.4GHz & 5GHz
  • 2×2:2 UL MU-MIMO
  • 1 x GbE WAN
  • 1 x GbE LAN
  • Support ecCLOUD
SUPPORT OPENWIFI VERSION
Overview

The SP-W2M-AC1200 is a concurrent dual-band 802.11ac Wave2 indoor access point. Featuring dual 2×2 Multi-User MIMO (MU-MIMO) radios, the SP-W2M-AC1200 can simultaneously support up to 300Mbps and 866Mbps data rates for both 2.4GHz and 5GHz bands. The sleek design of the SP-W2M-AC1200 allows it to be placed in conspicuously in both offices and homes, bringing fast wireless connections to hard-to-reach locations. The SP-W2M-AC1200 can be operated as stand alone mode or managed by Edgecore ecCLOUD cloud controller.

Specification
  • Wi-Fi

    Standards:
    • 802.11 a/b/g/n/ac
    • Concurrent dual-band 2.4 GHz & 5 GHz

    Radio Chains:
    • 2×2

    Spatial Streams:
    • 2; MU-MIMO support

    RF Performance (TX):
    • 2.4GHz: 25 dBm@ 6Mbps, 18 dBm@ 300Mbps
    • 5GHz: 23 dBm@ 6Mbps, 13 dBm@ 866Mbps

    RF Performance (RX):
    • 2.4GHz: -90 dBm@ 6Mbps, -73 dBm@ 300Mbps
    • 5GHz: -90 dBm@ 6Mbps, -58 dBm@ 866Mbps

    ESSID:
    • Up to 8 per radio (16 total)

  • Antenna

    • 2.4 GHz: 6 dBi omni-directional
    • 5 GHz: 8 dBi omni-directional

  • Mechanical

    Dimensions (W x D x H):
    • 8.3 x 8.3 x 2.2 cm

    Weight:
    • 82 g

  • Hardware

    Power:
    • 5W Typical
    • 6.5W Maximum

    LEDs:
    • Power
    • 2.4G-WiFi
    • 5G-WiFi
    • Eth0
    • Eth1

    Environmental Conditions:
    • Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)
    • Store Temperature: -40ºC to 70ºC (-40ºF to 158ºF)

  • Interfaces

    • 1 x 1000 Base-T Ethernet Port

    • 1 x 100 Base-T Ethernet Port

    • 1 x USB 2.0 Port (Power)

    • Dual flash image support

    • Integrated Bluetooth 2.1/ 4.1

  • Certifications

    • FCC
    • IC
    • CE
    • AU
    • MIC
    • NCC
    • SRRC
    • TELEC
    • JATE

  • Features

    • Supports Service Provider and Enterprise type networks

    • AP/Client/Client WDS modes with Flexible Bridging and Routing

    • IEEE802.11e Wi-Fi Multimedia (WMM-QoS)

    • WPA,WPA2-PSK,WPA2-AES, PSK and Enterprise WPA/WPA2-PSK, WPA/WPA2-Enterprise with 802.1X EAP-TLS, EAP-TTLS, EAP-GTC, EAP-MSCHAPv2 TKIP and AES encryption

    • Admission control by client MAC address
